PP Plastic hollow construction formwork machine

Product Name:PP  hollow construction formwork machine

PP  plastic hollow construction formwork machine is divided into single-layer plastic hollow construction formwork machine and three layer co-extruded hollow construction formwork machine . The machine consists of single screw extruder, mould, vacuum forming platform, tractor, cutter and stacking platform. The hollow construction formwork has light weight, high strength, not easy to deform, can be sawed, planed and nailed, and has been reused more than 50 times. No release agent is required and can be recycled. It is an ideal substitute for wood, bamboo and steel construction formwork.

Specifications

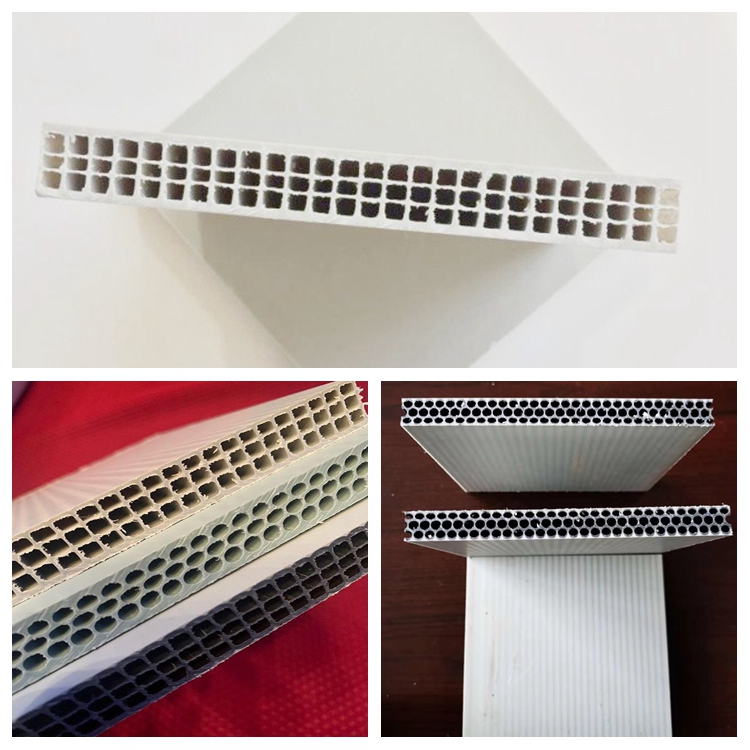

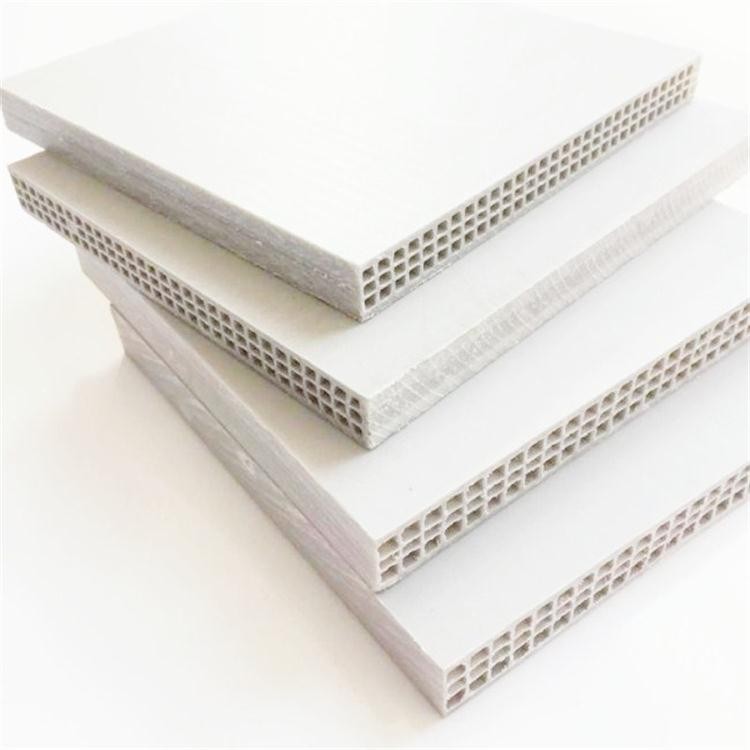

Plastic building formwork  /PE construction formwork/plastic hollow construction formwork

size:1220X2440 or 915X1830mm,can order according to your need
thickness :8-18mm

Designed for the extrusion of plastic construction formwork

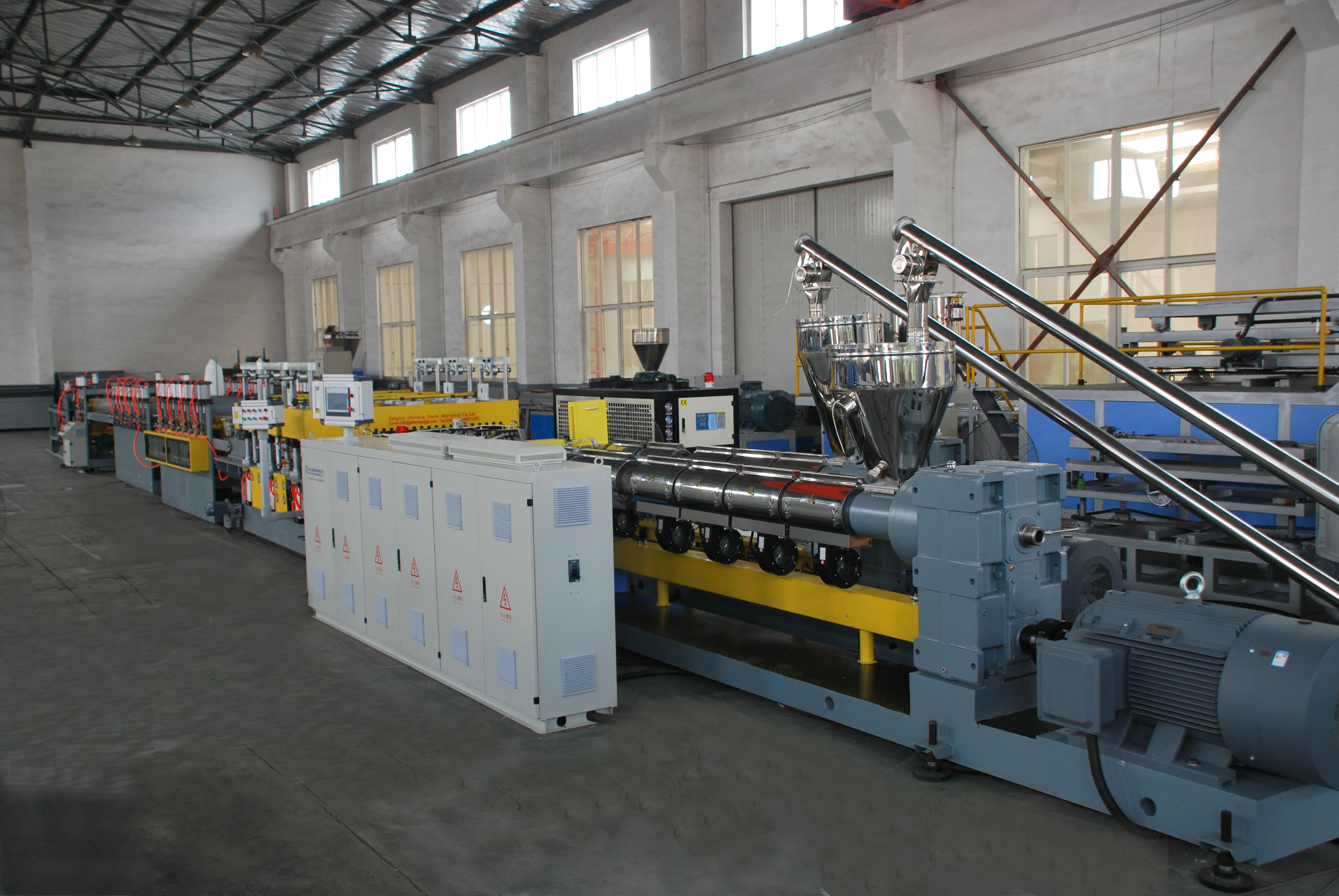

PE/PP hollow Plastic Construction Formwork Machinery consists of :

Auto-feeding Machine

SJ120/33 single screw extruder(this may vary according to customers' demand)

Auto screen changer

Extrusion mold and distributor

Calibrator

Board product downstream line

Raw material :PP recyled

Replace the polywood

Long duration of life,can reuse 20-50 times

Waste construstion board could be 100% recyled
